DNA motor 'walks' along nanotube, transports tiny particle

December 17, 2013


DNA Motor

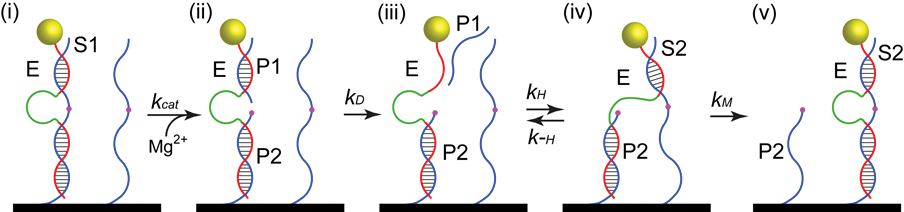

This illustration depicts the walking mechanism of a new type of DNA motor that researchers have demonstrated by using it to transport a nanoparticle along the length of a carbon nanotube. (Purdue University image/Tae-Gon Cha) Download Photo

WEST LAFAYETTE, Ind. - Researchers have created a new type of molecular motor made of DNA and demonstrated its potential by using it to transport a nanoparticle along the length of a carbon nanotube.

The design was inspired by natural biological motors that have evolved to perform specific tasks critical to the function of cells, said Jong Hyun Choi, a Purdue University assistant professor of mechanical engineering.

Whereas biological motors are made of protein, researchers are trying to create synthetic motors based on DNA, the genetic materials in cells that consist of a sequence of four chemical bases: adenine, guanine, cytosine and thymine. The walking mechanism of the synthetic motors is far slower than the mobility of natural motors. However, the natural motors cannot be controlled, and they don't function outside their natural environment, whereas DNA-based motors are more stable and might be switched on and off, Choi said.

"We are in the very early stages of developing these kinds of synthetic molecular motors," he said.

New findings were detailed in a research paper published this month in the journal Nature Nanotechnology.

In coming decades, such molecular motors might find uses in drug delivery, manufacturing and chemical processing.

The new motor has a core and two arms made of DNA, one above and one below the core. As it moves along a carbon-nanotube track it continuously harvests energy from strands of RNA, molecules vital to a variety of roles in living cells and viruses.

The Nature Nanotechnology paper was authored by graduate students Tae-Gon Cha, Jing Pan and Haorong Chen; former undergraduate student Janette Salgado; graduate student Xiang Li; Chengde Mao, a professor of chemistry; and Choi.

"Our motors extract chemical energy from RNA molecules decorated on the nanotubes and use that energy to fuel autonomous walking along the carbon nanotube track," Choi said.

The core is made of an enzyme that cleaves off part of a strand of RNA. After cleavage, the upper DNA arm moves forward, binding with the next strand of RNA, and then the rest of the DNA follows. The process repeats until reaching the end of the nanotube track.

Researchers used the motor to move nanoparticles of cadmium disulfide along the length of a nanotube. The nanoparticle is about 4 nanometers in diameter.

The researchers combined two fluorescent imaging systems to document the motor's movement, one in the visible spectrum and the other in the near-infrared range. The nanoparticle is fluorescent in visible light and the nanotubes are fluorescent in the near-infrared.

The motor took about 20 hours to reach the end of the nanotube, which was several microns long, but the process might be sped up by changing temperature and pH, a measure of acidity.

This work has been supported by the U.S. Office of Naval Research.

Writer: Emil Venere, 765-494-4709, venere@purdue.edu

Source: Jong Hyun Choi, 765-496-3562, jchoi@purdue.edu

Note to Journalists: An electronic or hard copy of the research paper is available by contacting Nature at press@nature.com or calling 212-726-9231.




ABSTRACT

A Synthetic DNA Motor that Transports Nanoparticles Along Carbon Nanotubes

Tae-Gon Cha1, Jing Pan1, Haorong Chen1, Janette Salgado1, Xiang Li2, Chengde Mao2 and Jong Hyun Choi1 *

1 School of Mechanical Engineering, Bindley Bioscience Center, Birck Nanotechnology Center, Purdue University

2 Department of Chemistry, Purdue University, West Lafayette, Indiana 47907, USA. *e-mail: jchoi@purdue.edu

Intracellular protein motors have evolved to perform specific tasks critical to the function of cells such as intracellular trafficking and cell division. Kinesin and dynein motors, for example, transport cargos in living cells by walking along microtubules powered by adenosine triphosphate hydrolysis. These motors can make discrete 8 nm centre-of-mass steps and can travel over 1 micrometer by changing their conformations during the course of adenosine triphosphate binding, hydrolysis and product release. Inspired by such biological machines, synthetic analogues have been developed including self-assembled DNA walkers that can make stepwise movements on RNA/DNA substrates or can function as programmable assembly lines. Here, we show that motors based on RNA-cleaving DNA enzymes can transport nanoparticle cargoes (CdS nanocrystals in this case) along single-walled carbon nanotubes. Our motors extract chemical energy from RNA molecules decorated on the nanotubes and use that energy to fuel autonomous, processive walking through a series of conformational changes along the one-dimensional track. The walking is controllable and adapts to changes in the local environment, which allows us to remotely direct GO and STOP actions. The translocation of individual motors can be visualized in real time using the visible fluorescence of the cargo nanoparticle and the near-infrared emission of the carbon-nanotube track. We observed unidirectional movements of the molecular motors over 3 micrometers with a translocation velocity on the order of 1 nm per min under our experimental conditions.
