SDOF harmonic response



Single DOF Steady-State Response due to Harmonic Excitation

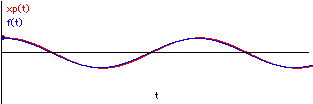

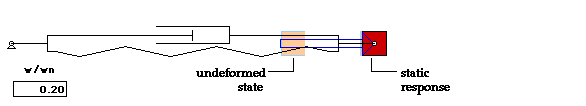

Frequency of excitation near zero


The response is in phase with the excitation and the amplitude of response approaches the static response.



Time History Frequency Response Functions

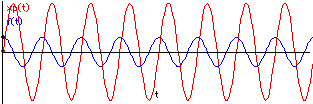

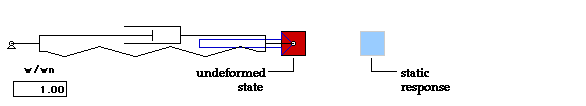

Frequency of excitation near resonance
The response is nearly 90 degrees out of phase with the excitation and the amplitude of response is large.





Time History Frequency Response Functions

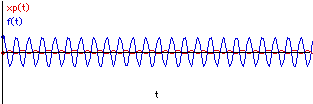

Large frequency of excitation
The response is 180 degrees out of phase with the excitation and the amplitude of response is small.



Time History Frequency Response Functions
