January 17, 2018

A popular tool for drug discovery just got 10 times faster

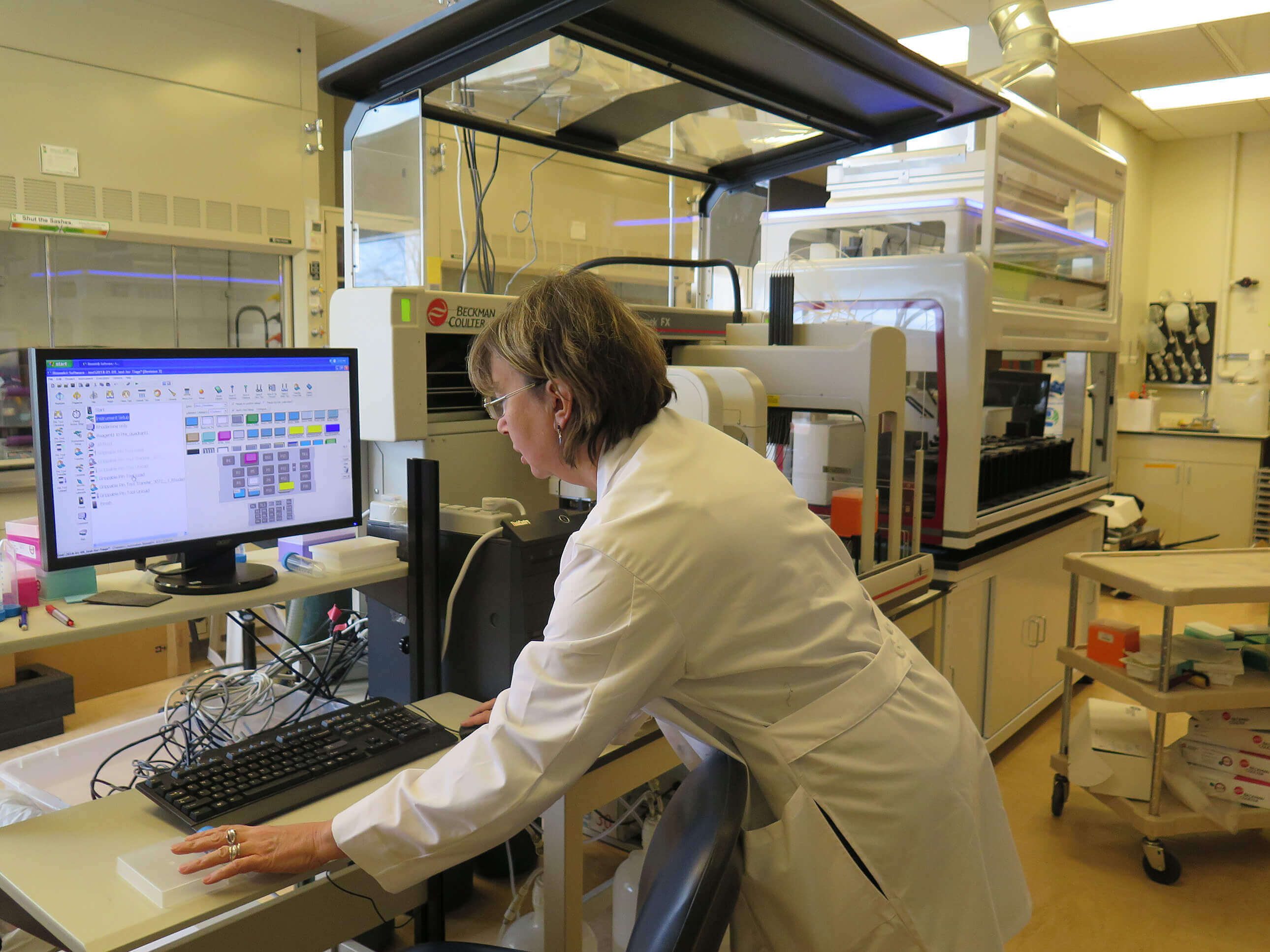

Cooks DESI Laboratory manager Larisa Avramova operates a robotic fluid handling system used to spot chemical reactions in plates to be analyzed by DESI-MS. Download image

WEST LAFAYETTE, Ind. — Researchers at Purdue University just made high-throughput screening, a process often used in drug discovery, 10 times faster than previous methods.

“The area of high-throughput library screening reached a plateau, where the fastest screens took about eight seconds per target,” said Graham Cooks, the Henry B. Hass Distinguished Professor of Analytical Chemistry at Purdue, who led the research. “If you can reduce that time by a factor of ten, which is what we’re reporting, then you can potentially do library screens that might have taken months in days.”

High-throughput screening uses robotics, data processing software, liquid handling devices and sensitive detectors to quickly conduct millions of chemical, genetic and pharmacological tests. It allows researchers to identify active compounds, antibodies or genes that modulate a particular biomolecular pathway, which is especially useful for drug discovery.

Cooks’ lab combined desorption electrospray ionization (DESI) mass spectrometry, a method of making ions from solid samples, with robotic sampling technologies to create a faster screening process. The research was published in the journal Chemical Science.

DESI, which was originally developed for biological tissue imaging, sprays electrically charged droplets at a sample, from which ions are generated and then collected and analyzed in a standard mass spectrometer. This method was also developed in Cooks’ lab at Purdue.

“We are spraying a solvent onto a mixture and creating a new product, which we’re seeing in a splashed droplet,” Cooks said.

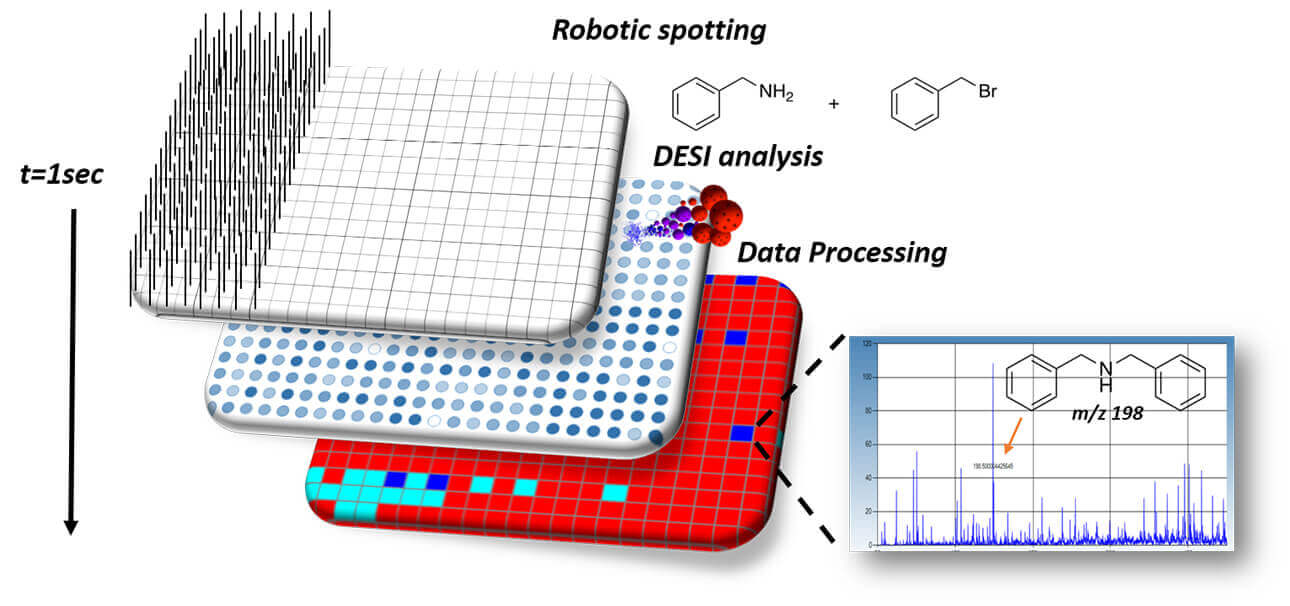

Cooks screening Graphic abstract showing high-throughput analysis of reaction mixture arrays using methods that were originally developed for biological tissue imaging. Download image

This technique allows researchers to perform a reaction and analyze the product in one step, in one second. That’s the power of it, Cooks said.

The research was supported by the Defense Advanced Research Project Agency’s Make-It! program, which aims to develop technology to create any particular chemical from cheap raw materials. Five research institutions are involved in the program, and Purdue’s task is to develop methods to rapidly analyze the results of reagents being mixed together under particular conditions.

The project’s objective is essentially to rationalize organic synthesis.

“How do you do that? You have to create some accessible knowledge base, which says that that if you combine sample A with sample B you will get sample C,” Cooks said. “There’s an algorithmic knowledge base that needs to be constructed, and then there’s the conditions under which particular reagents are examined. So it’s not only the reagents, it’s also the solvents, the catalysts, the physical conditions that we’re looking at.”

The current methods for designing and producing new synthetic molecules can take years between initial design and final production. Increasing the rate of discovery and production of molecules could lead to advances in several areas crucial to national security, according to DARPA.

Writer: Kayla Zacharias, 765-494-9318, kzachar@purdue.edu

Source: Graham Cooks, 765-494-5263, cooks@purdue.edu

Note to Journalists: A copy of the paper is available here.


ABSTRACT

High Throughput Reaction Screening Using Desorption Electrospray Ionization Mass Spectrometry

Michael Wleklinski, Bradley P. Loren, Christina R. Ferreira, Zinia Jaman, Larisa Avramova, Tiago J. P. Sobreira, David H. Thompson, R. Graham Cooks

We report the high throughput analysis of reaction mixture arrays using methods and data handling routines that were originally developed for biological tissue imaging. Desorption electrospray ionization (DESI) mass spectrometry (MS) is applied in a continuous on-line process at rates that approach 104 reactions/hour at area densities of up to 1 spot/mm2 (6,144 spots/standard microtiter plate) with the sprayer moving at ca. 104 microns/s. Data are analyzed automatically by MS using in-house software to create ion images of selected reagents and products as intensity plots in standard array format. Amine alkylation reactions were used to optimize the system performance on PTFE membrane substrates using methanol as the DESI spray/analysis solvent. Reaction times can be <100 μsec when reaction acceleration occurs in microdroplets, enabling the rapid screening of processes like N-alkylation and Suzuki coupling reactions as reported herein. Products and by-products were confirmed by on-line MS/MS upon rescanning of the array.
