New technique to improve quality control of lithium-ion batteries
May 7, 2013

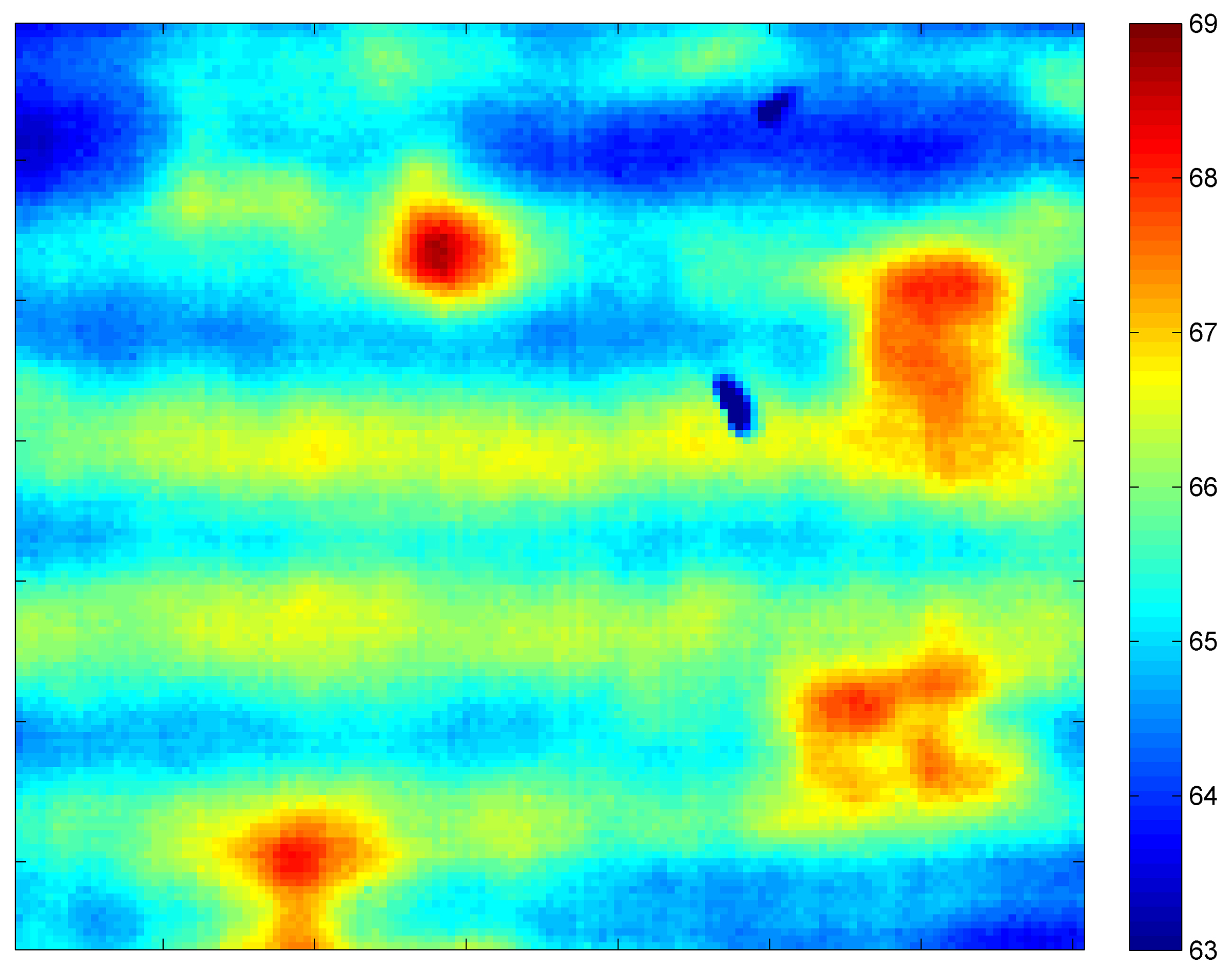

thermal image was recorded using a new tool developed at Purdue that detects
flaws in lithium-ion batteries as they are being manufactured, a step toward
reducing defects and inconsistencies in the thickness of electrodes that affect
battery life and reliability. (Purdue University image)
WEST LAFAYETTE, Ind. – Researchers have created a new tool to detect flaws in lithium-ion batteries as they are being manufactured, a step toward reducing defects and inconsistencies in the thickness of electrodes that affect battery life and reliability.
The electrodes, called anodes and cathodes, are the building blocks of powerful battery arrays like those used in electric and hybrid vehicles. They are copper on one side and coated with a black compound to store lithium on the other. Lithium ions travel from the anode to the cathode while the battery is being charged and in the reverse direction when discharging energy.
The material expands as lithium ions travel into it, and this expansion and contraction causes mechanical stresses that can eventually damage a battery and reduce its lifetime, said Douglas Adams, Kenninger Professor of Mechanical Engineering and director of the Purdue Center for Systems Integrity.
The coating is a complex mixture of carbon, particulates that store lithium, chemical binders and carbon black. The quality of the electrodes depends on this "battery paint" being applied with uniform composition and thickness.
"A key challenge is to be able to rapidly and accurately sense the quality of the battery paint," said James Caruthers, Reilly Professor of Chemical Engineering and co-inventor of the new sensing technology.
The Purdue researchers have developed a system that uses a flashbulb-like heat source and a thermal camera to read how heat travels through the electrodes. The "flash thermography measurement" takes less than a second and reveals differences in thickness and composition.
"This technique represents a practical quality-control method for lithium-ion batteries," Adams said. "The ultimate aim is to improve the reliability of these batteries."
Findings are detailed in a research paper being presented during the 2013 annual meeting of the Society for Experimental Mechanics, which is June 3-5 in Lombard, Ill. The paper was written by doctoral students Nathan Sharp, Peter O'Regan, Anand David and Mark Suchomel, and Adams and Caruthers.
The method uses a flashing xenon bulb to heat the copper side of the electrode, and an infrared camera reads the heat signature on the black side, producing a thermal image.
The researchers found that the viscous compound is sometimes spread unevenly, producing a wavelike pattern of streaks that could impact performance. Findings show the technology also is able to detect subtle differences in the ratio of carbon black to the polymer binder, which could be useful in quality control.
The technique also has revealed various flaws, such as scratches and air bubbles, as well as contaminants and differences in thickness, factors that could affect battery performance and reliability.
"We showed that we can sense these differences in thickness by looking at the differences in temperature," Adams said. "When there is a thickness difference of 4 percent, we saw a 4.8 percent rise in temperature from one part of the electrode to another. For 10 percent, the temperature was 9.2 percent higher, and for 17 percent it was 19.2 percent higher."
The thermal imaging process is ideal for a manufacturing line because it is fast and accurate and can detect flaws prior to the assembly of the anode and cathodes into a working battery.
"For example, if I see a difference in temperature of more than 1 degree, I can flag that electrode right on the manufacturing floor," Adams said. "The real benefit, we think, is not just finding flaws but also being able to fix them on the spot."
Purdue has applied for a patent on the technique.
Writer: Emil Venere, 765-494-4709, firstname.lastname@example.org
Sources: Douglas E. Adams, 765-449-4249, email@example.com
James Caruthers, 756-494-6625, firstname.lastname@example.org
Lithium-ion Battery Electrode Inspection Using Flash Thermography
Nathan Sharp, Douglas Adams, James Caruthers, Peter O'Regan, Anand David, Mark Suchomel
Nonuniformity in lithium-ion battery electrode thickness or composition can lead to reduced performance and longevity. Currently battery manufacturers have no way to quickly and accurately assess electrode quality during the manufacturing process. A finite element heat transfer model based on heat conduction equations has been developed to provide theoretical justification and insight. The model shows that a heat pulse to the back of a current collector will conduct through the electrode in such a way that spatial changes in thickness or material properties will have different transient temperature responses and that the response difference will be maximum around 3-10 ms after the flash occurs. Experiments were run to test the effectiveness of the flash thermography method for detecting several different types of defects. Gross defects such as contaminants, scratches and bubbles were shown to be easily detectable. Thickness variation was also tested and shown to have a sensitivity of 1 percent change in temperature for 1 percent change in thickness. Thickness differences were shown to be detectable in at least as small as 4 percent thickness difference. Composition differences were also tested, looking at the difference in relative percentage of active material, carbon black, and PVDF. Not enough data was taken to quantify the sensitivities of composition changes, but testing was shown to be able to detect composition differences. Thermography testing also showed a wavelike thickness pattern occurring, which has not previously been reported on battery electrodes. Comparison with a commercially purchased electrode showed that this phenomenon exists on the commercial electrode as well. Further testing needs to be conducted to determine the cause of this phenomenon, but it is hypothesized that is due either to a vibration in the coater blade or a nonlinear fluid interaction of the electrode slurry. Results and analysis show that flash thermography is a viable method to detect variability and defects in battery electrodes during the manufacturing process.
