Discussion and hints:

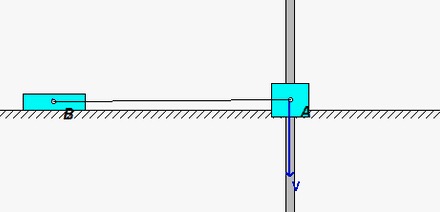

Let’s first take a look at the motion of the mechanism, as shown in the simulation results below.

Recall the following four-step plan outline in the lecture book and discussed in lecture:

Step 1: FBD
Draw a free body diagram for the entire system of A+B+bar. Which, if any, forces do non-conservative work on this system? Can you justify this from the FBD?

Step 2: Kinetics (work/energy equation)
Write down the work energy equation for the system of A+B+bar. The KE will be the sum of the KEs of A and B. The PE will be the sum of the PEs for A and B.

Step 3: Kinematics
Look for the instant center at Position 2 to simplify your kinematics for that position.

Step 4: Solve
Solve your work/energy equation for the speed of block A.

---

Any questions??
