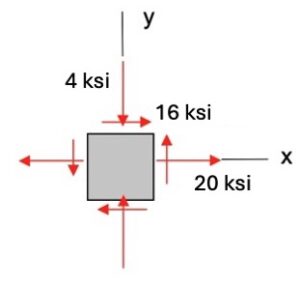

PROBLEM STATEMENT

Hints and Discussion Thread

1. σ_ave and R represent the location of the center and the radius of Mohr’s circle in the σ-τ plane. Use the equations provided in the lecture book for these two parameters.
2. Be as neat as possible in drawing your Mohr’s circle to make sure that your circle is round.
3. The x-axis on Mohr’s circle corresponds to (σ,τ) = (σ_x,τ_xy). Recall that the positive τ-axis points DOWNWARD.
4. What are the two  extreme values for normal stress in your Mohr’s circle? These are called the principal stresses.
5. What are the two extreme values for shear stress in your Mohr’s circle?
6. Use the stress transformation equations derived in the lecture book.

Any questions? Ask (and answer) questions here.
