New technology could help prevent fractures in horses

Prototype monitoring system
Download photo
caption below

"When a microcrack occurs in a bone it generates sound waves similar to those created by earthquakes," Akkus said. "The goal is to create a wearable device that would alert the person when a stress fracture was imminent so that they could stop rigorous physical activity long enough for the bone to heal."

Researchers at Purdue have designed wearable acoustic emission sensors, which could be used to monitor the formation of these "microcracks" in bones that can lead to hairline stress fractures unless detected in time. The technology might help prevent serious fractures in racehorses that could cause lameness and lead to more serious catastrophic bone failure.

Monitoring the formation of "microcracks"
Download photo
caption below

Catastrophic injuries are rare in racehorses but still remain a major concern to horse owners and racing fans. This problem was highlighted by the recent tragedy involving this year's Kentucky Derby second-place finisher Eight Belles. The 3-year-old filly broke both ankles as she was slowing down at the end of the race and had to be euthanized. Big Brown won both the Kentucky Derby and Preakness Stakes and is favored to win the Belmont Stakes on Saturday (June 7).

"The need for new technologies to prevent stress fractures and the many other causes of catastrophic injury to racehorses is great," said Stephen Adams, a veterinarian and professor in the Purdue School of Veterinary Medicine.

"There is a huge investment in thoroughbred and standardbred horses, and a thoroughbred racehorse can cost between $4,000 to $10 million and cost thousands more each month for training. About 70 percent of young thoroughbreds develop microcracks in their cannon bones known as bucked shins. About 10 percent of horses with bucked shins will have radiographic evidence of stress fractures. One of our goals is to prevent stress fractures and curtail catastrophic fractures."

Estimated losses attributed to bone fractures in thoroughbred or standardbred horses used in the horse racing industry exceed $10 million annually.

"While it is still in the early stages, this technology holds great promise for horses," said Adams, who specializes in equine lameness and surgery and is collaborating with Akkus in testing the system on horses. "These horses are running 40 miles an hour, and if there is a microfracture in the animal there is danger it will become a catastrophic failure. Currently, microfractures are not visible on an X-ray, and we need a viable way to detect tiny fractures before they become stress fractures or catastrophic fractures."

Shane Fimbel, technology transfer manager for the Purdue Research Foundation's Office of Technology Commercialization, is working with Adams and Akkus to move the technology to the market.

"This technology is important in many ways, but in particular with horses and other animals because they cannot articulate why they are in pain," Fimbel said.

Such a technology also might protect soldiers, athletes and dancers. Akkus will be visiting West Point this summer to test the monitoring system on cadets going through basic training.

"Strenuous military exercises subject soldiers to prolonged physical activity in which relatively small forces are repeatedly exerted on bones," Akkus said. "The forces are not initially strong enough to break a bone, but it's the repetition that poses the most danger by causing microscopic cracks to accumulate over time and eventually result in stress fractures."

Depending on the service branch and type of training, 5 percent to 20 percent of U.S. basic training recruits experience stress fractures of the lower extremities, with the highest incidence in women recruits, Akkus said.

About 5 percent to 10 percent of athletes experience stress fractures.

A stress fracture occurs because cracks form when mineralized collagen fibers in bone fail, producing sound waves that cause a rippling motion on the skin's surface.

"This is the same thing that happens during an earthquake, but on a microscopic scale and at a higher frequency," Akkus said. "Instead of an earthquake-size opening, these cracks are about a tenth of a millimeter wide."

Accumulating cracks sometimes cause "spontaneous fractures" that occur without warning, afflicting the young and old alike, including athletes and elderly people suffering from osteoporosis.

A major factor in the crack formation is the dynamic process bones use to continually rebuild themselves. When bone is damaged, specialized cells bore tunnel-like holes to remove the damaged tissue and then fill in the resulting cavity with new bone.

Hard physical activity without rest increases the stress in these porous areas that are under repair.

One reason it's difficult to diagnose the hairline fractures is because they are caused by the gradual accumulation of microscopic cracks, which are not detectable with conventional imaging technologies.

"It's really hard to measure stresses in bone without cutting open the bone to study it," Akkus said. "And there is very little warning because you don't have horrible pain. You might have some discomfort, but you can keep exercising or whatever activity you are doing."

As hard as it is for humans to discern the pain due to developing stress fractures, it is relatively impossible for a horse to overtly display its discomfort, making this technology all the more valuable for equine applications.

"Ultimately, we would like to do real-time monitoring of damage activity and learn how to distinguish between a small crack and a more structurally threatening defect," Akkus said. "There are different types of cracks that occur, and it's important to be able to distinguish among them so that we can determine how serious the damage is."

To differentiate the various types of cracks, researchers are integrating "pattern recognition" software and earthquake models, working with Robert Nowak, a Purdue professor of earth and atmospheric sciences. The multidisciplinary research involves biomedical and electrical engineering, veterinary medicine, and earth and atmospheric sciences.

Bones most affected in horses are the cannon bones of the front limb, which are the equivalent of human finger bones. The most commonly affected bones in humans are those in the feet, legs and hips, particularly the ball-and-socket joints that connect the legs to the pelvis.

Researchers at Purdue and the University of Toledo have jointly filed patents on the discovery through the Purdue Research Foundation Office of Technology Commercialization.

The Purdue Research Park is part of the Purdue Research Foundation, a private, nonprofit foundation created to assist Purdue University in the area of economic development. In addition to the Purdue Research Park in West Lafayette, the foundation has established or is currently constructing technology parks in other locations around Indiana including Merrillville, New Albany and Indianapolis.

Writers: Cynthia Sequin, (765) 494-4192, casequin@prf.org

Emil Venere, (7675) 494-4709, venere@purdue.edu

Sources: Ozan Akkus, (765) 496-7517, ozan@purdue.edu

Stephen Adams, adamss@purdue.edu

Shane Fimbel, (765) 494-5785, smfimbel@prf.org

Purdue News Service: (765) 494-2096; purduenews@purdue.edu

Note to Journalists: Akkus is pronounced Ah-Koosh. A produced video, b-roll and photographs are available by contacting Cynthia Sequin, (765) 494-4192, casequin@prf.org

PHOTO CAPTION:

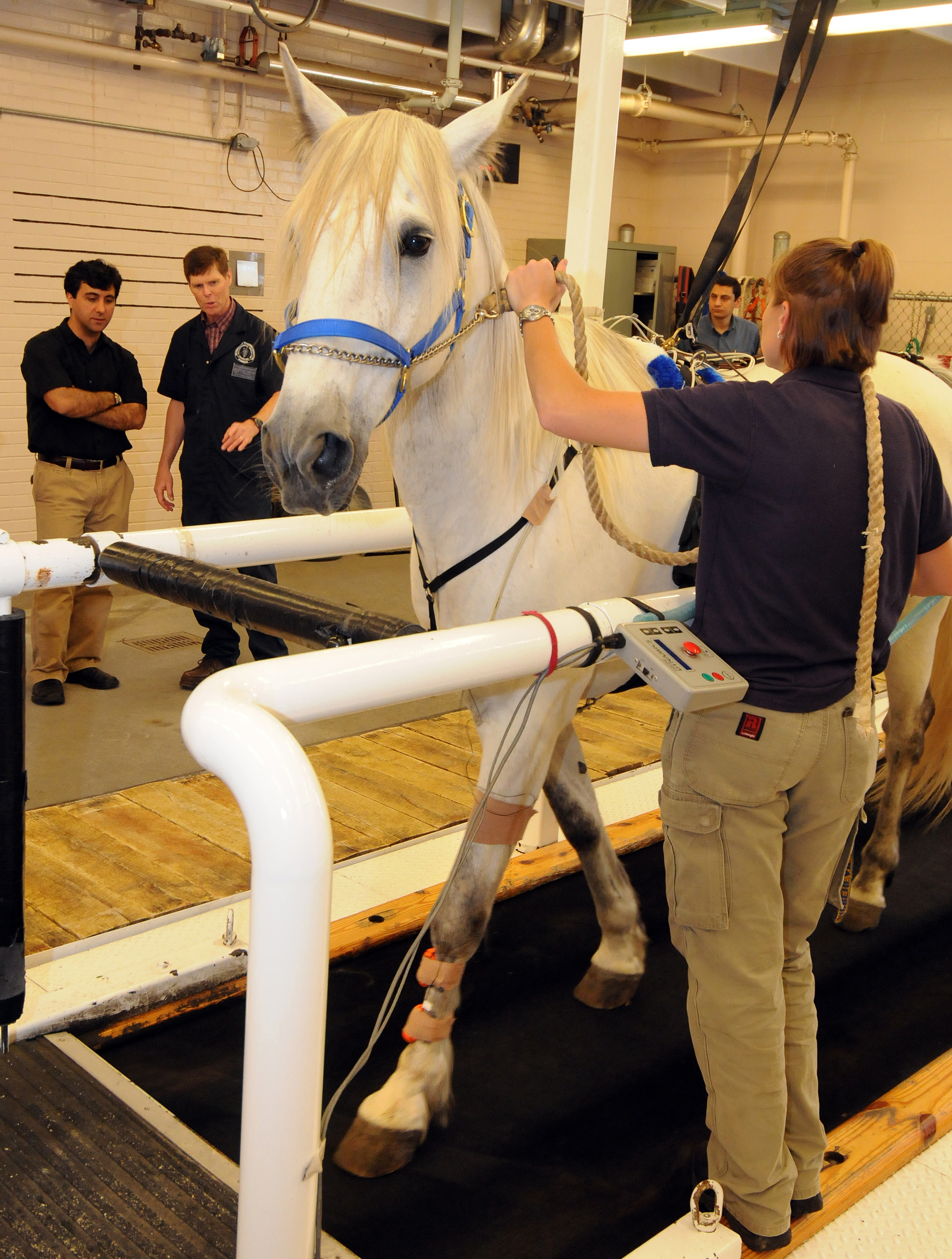

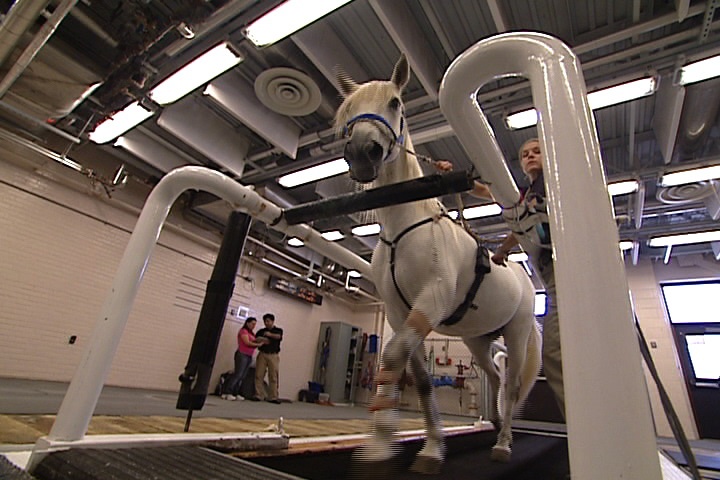

Whitey, a 14-year-old standardbred horse, wears a prototype monitoring system while walking on a treadmill at the Purdue Large Animal Hospital with the aid of his trainer Crystal Hagan, a registered large animal veterinarian technician. In the background are Ozan Akkus, an associate professor in the Purdue Weldon School of Biomedical Engineering, and Stephen Adams, a veterinarian and professor in the Purdue School of Veterinary Medicine. Akkus and Adams are developing a monitoring system that uses sound waves to check for "microcracks" that form in bones and can lead to stress fractures. (Purdue News Service photo/David Umberger)

A publication-quality photo is available at https://www.purdue.edu/uns/images/+2008/akkus-horsetreadmill.jpg

PHOTO CAPTION:

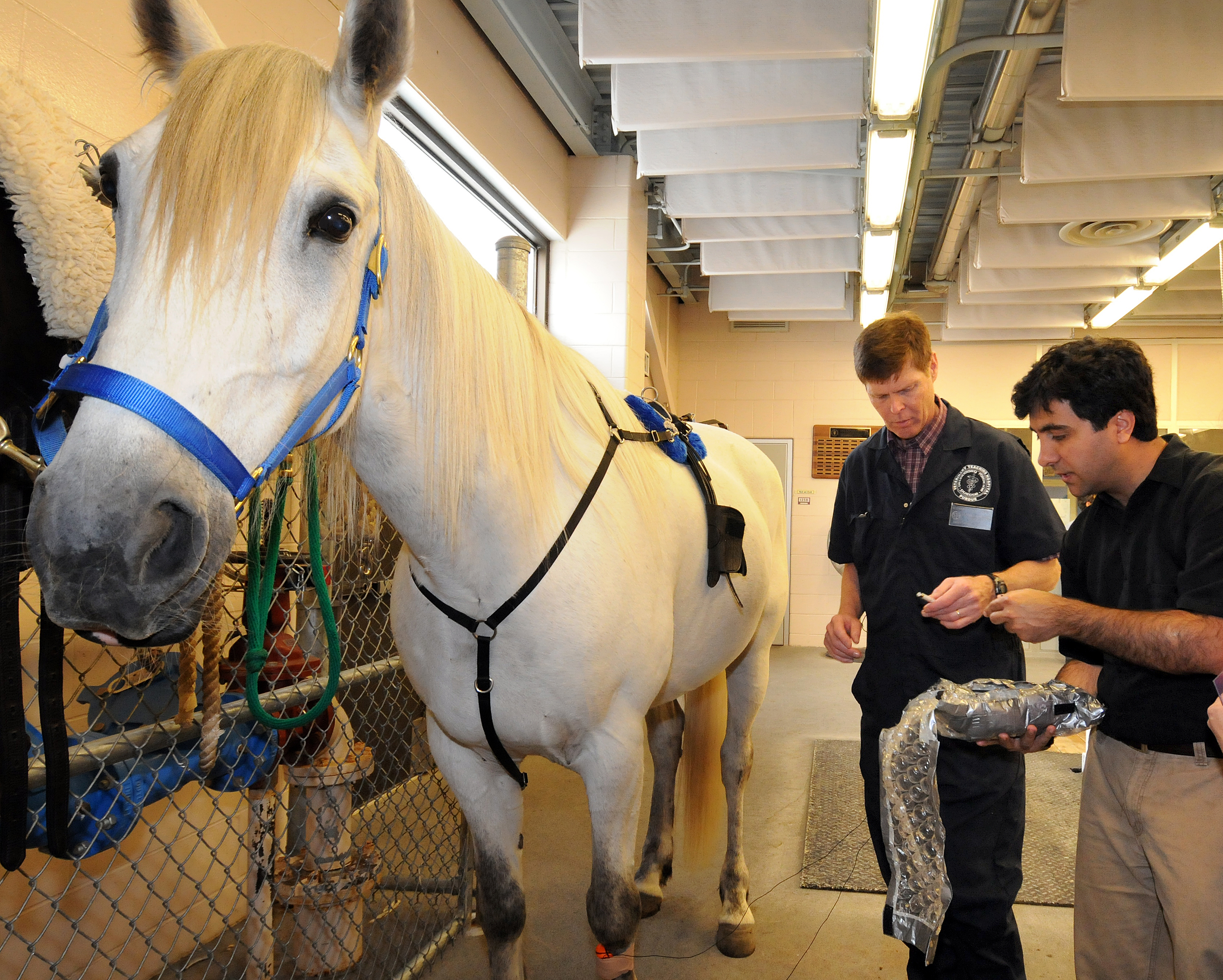

Stephen Adams, a veterinarian and professor in the Purdue School of Veterinary Medicine, and Ozan Akkus, an associate professor in the Weldon School of Biomedical Engineering, secure a prototype monitoring system on the cannon bone of Whitey, a 14-year-old standardbred horse. The device could help to prevent stress fractures by monitoring the formation of "microcracks" in bones that can lead to stress fractures unless detected in time. The research goal is to create a device that would alert a horse trainer when a stress fracture is imminent so that they could stop rigorous physical activity long enough for the bone to heal. (Purdue News Service photo/David Umberger)
