Purdue simulation to help merge molecules with silicon electronics
WEST LAFAYETTE, Ind. – Engineers at Purdue University have created a nanotech simulation tool that shows how current flows between silicon atoms and individual molecules to help researchers design "molecular electronic" devices for future computers and advanced sensors.
|
Molecular electronics could make it possible to manufacture hardware by "growing" circuits and devices in layers that may "self-assemble," similar to the growth of structures in living organisms. Devices for a variety of applications might be fabricated using techniques based on chemical attractions rather than the complex, expensive processes now used to etch electronic circuits.
One challenge, however, in developing molecular electronics is to better understand how electricity is conducted between molecules and silicon contacts connecting various devices in a circuit, said Geng-Chiau Liang, a postdoctoral research assistant in Purdue's School of Electrical and Computer Engineering.
Researchers will be able to use the new simulation tool to see precisely how electrical conductivity changes depending on how molecules are connected to silicon, information that is critical to properly design the devices.
"I believe we might be one of the first theorists who have created a tool to show how electricity is conducted between molecules and silicon at the atomic level," said Avik Ghosh, a research scientist in electrical and computer engineering who worked with Liang.
Details about the simulation tool are appearing in the current issue (Aug. 12, Volume 95, Issue 7) of the journal Physical Review Letters. The paper was written by Liang and Ghosh. The research has been funded through two national centers based at Purdue's Discovery Park, the university's hub for interdisciplinary research.
Scientists and engineers are working to develop techniques for creating future computers, sensors and other devices that use molecules, such as proteins and DNA, instead of conventional electronic components. The concept may spawn new "biochips" that will use proteins in sensors for detecting contaminants and pollutants in the air and water and for analyzing the blood and biological samples.
"The idea is that molecules might be able to complement or supplement silicon," Ghosh said. "All traditional research in molecular electronics has focused on combining molecules with metal contacts, but we've been studying the interaction of molecules and silicon instead of metals because the computer industry is built on semiconductors, which is silicon."
Liang and Ghosh used the tool to show how current flows between silicon atoms and molecules called buckminsterfullerenes, or "buckyballs."
Named after architect R. Buckminster Fuller, who designed the geodesic dome, buckyballs are soccer-ball-shaped molecules containing 60 carbon atoms. A buckyball has a width of about 1 nanometer, or one-billionth of a meter, which is roughly 10 atoms wide.
"This paper is a proof of concept showing that our theory is at a point that we can actually look at experiments and explain them quantitatively," Liang said. "We have shown how the conductance of electricity changes when you change the type of bond connecting buckyballs to silicon."
The researchers used their computational model to predict how electricity flows when buckyballs and silicon are connected in three ways. In one case, there is no chemical bond – the buckyball is simply sitting on top of the silicon. In another case, the molecule has been connected to silicon by annealing, or heating, the silicon. And in the third case, the buckyball is resting inside of a tiny pit, a natural defect existing in the silicon.
The model precisely plotted how conduction and voltage changed in the three types of connections, and those predictions agreed with experimental data from other researchers who measured the actual changes in current flow in laboratories.
"Because our predictions agreed with actual experimental data, we know they are accurate," Ghosh said. "This means you can use the model to give theoretical guidance to experiments instead of using strictly a trial-and-error approach."
Together with Supriyo Datta, the Thomas Duncan Distinguished Professor of Electrical and Computer Engineering at Purdue, and his students, Liang and Ghosh developed the mathematical theory on which the model is based. The researchers used a Purdue supercomputer to develop and test the simulation.
The Purdue engineers used buckyballs in their simulation because the molecules are well-known in the scientific community and data are readily available. The tool, however, could be used to simulate conduction using any molecule connected to silicon.
"Researchers want to know what kind of molecule can provide specific conduction characteristics, and they can substitute other molecules for buckyballs," Liang said. "What we can now do is theoretically explain the experiments in quantitative detail, which is really important for any technology.
"To do this, you must have an atomistic understanding of current flow – basically, how does electricity conduct at the atomic level."
The research is ongoing and has been supported by the Network for Computational Nanotechnology, funded by the National Science Foundation and directed by Mark Lundstrom, Purdue's Scifres Distinguished Professor of Electrical and Computer Engineering; the Semiconductor Research Corporation; the Defense University Research Initiative on Nanotechnology, which is supported by the U.S. Army Research Office; and the Defense Advanced Research Projects Agency.
Writer: Emil Venere, (765) 494-4709, venere@purdue.edu
Sources: Geng-Chiau Liang, (765) 494-9050, liangg@purdue.edu
Avik Ghosh, (765) 494-9023, (Cell Phone) (765) 532-0538, ghosha@ecn.purdue.edu (After Aug. 25, use ag7rq@virginia.edu)
Purdue News Service: (765) 494-2096; purduenews@purdue.edu
Note to Journalists: An electronic copy of the research paper is available from Emil Venere, (765) 494-4709, venere@purdue.edu
IMAGE CAPTION:

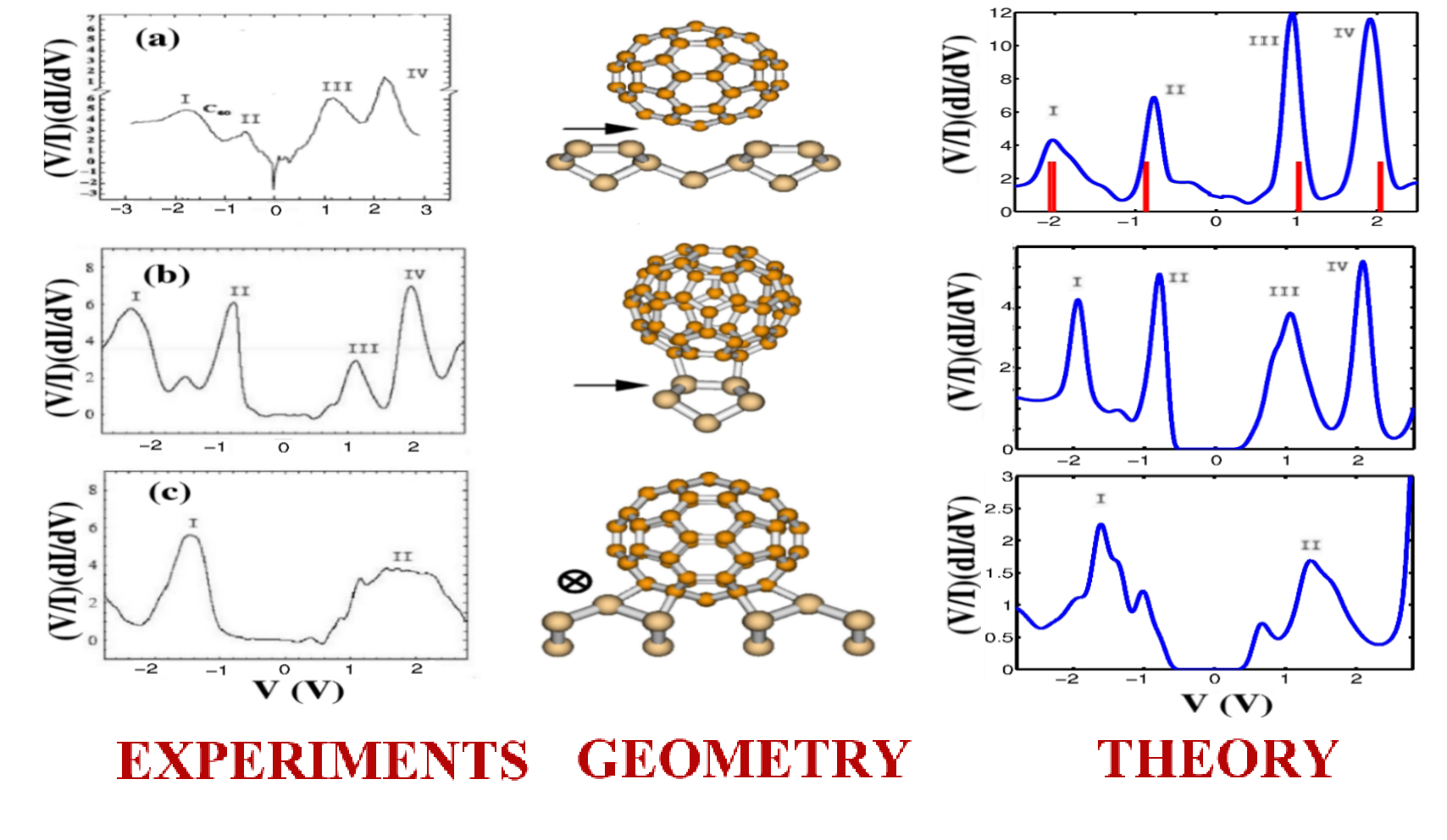

This image shows how a new simulation predicts current flow between silicon atoms and molecules depending on how the two materials are connected to each other. The graphs on the left are the simulation tool's predictions and the graphs on the right are from data collected in experiments performed by other researchers. The comparison demonstrates that the simulation tool's predictions are the same as the experimental data, proving that the tool is accurate. The tool will help researchers design "molecular electronic" devices for future computers and advanced sensors. (School of Electrical and Computer Engineering, Purdue University)
A publication-quality image is available at https://www.purdue.edu/uns/images/+2005/liang-buckyballs.jpg
Identifying Contact Effects
in Electronic Conduction through C60 on Silicon
School of Electrical and Computer Engineering,
Purdue University
We present a theory of current conduction through buckyball (C60) molecules on silicon by coupling a density functional treatment of the molecular levels embedded in silicon with a non-equilibrium Green's function treatment of quantum transport. Several experimental variations in conductance-voltage characteristics are quantitatively accounted for by varying the detailed molecule-silicon bonding geometries. We identify how variations in contact surface microstructure influence the number, positions, and shapes of the conductance peaks, while varying separations of the scanning probe from the molecules influence their peak amplitudes.
